Introduction
Hydraulic cylinders use fluid force to move things back and forth in a straight path, which is great for tasks like raising big weights, scooping soil, or shifting stuff. If you want these cylinders to rock, you have to pick the best parts. Solid ones keep your equipment secure, sturdy, and going for a long time.
Why Choosing the Right Hydraulic Cylinder Components Matters
Picking parts for hydraulic cylinders isn’t like grabbing a quick bite from the cupboard. It’s a huge thing for how good your machine performs, how reliable it is, and how much cash you’ll spend on fixes. The correct parts make everything operate slick as oil and prevent those pesky stops. But choose the bad ones, and you’re in for headaches, larger costs, and a machine that gives up too quick.
Key Factors to Consider When Choosing Hydraulic Cylinder Components
To score the best parts, you gotta think about a few key things. Like, how much weight can the cylinder handle? What kind of machine is it for? What’s the pressure like, and where’s it gonna be working?
1. Type of Application and Environment
Where your cylinder’s gonna be used is a big deal. If it’s for construction gear, it’s gotta deal with messy stuff like dust, crazy hot or freezing cold weather, or even chemicals. Seals, for instance, gotta be tough as heck to handle scratches and rough conditions.
2. Load Capacity Requirements
Every cylinder’s built to carry a certain amount of weight. Grab one that’s too weak, and it’s gonna break. The piston and rod gotta be the perfect size for whatever you’re lifting or pushing.
3. Cylinder Stroke Length and Diameter
The stroke length and diameter are a big deal too. They decide how far the piston can go and how much power it’s got. If the stroke doesn’t match what your machine needs, it’s gonna suck at its job or maybe even get busted.
4. Operating Pressure and Temperature Conditions
You gotta pick cylinders based on the pressure and heat they’re gonna deal with. Like, cylinders in excavators handle some seriously wild pressure. Picking parts that can take that kind of force is a must to keep things from going nuts.
The Main Hydraulic Cylinder Components
Hydraulic cylinders are made up of a bunch of parts, and each one’s got its own gig to keep things running like a dream. Let’s check out the main crew.
The Cylinder Barrel
The cylinder barrel’s like the main hangout where all the other pieces kick back. It’s usually built from steel or stainless steel, so it’s tough enough for high pressure tasks. A slick barrel lets the piston glide super smooth and stops any leaks from popping up. Choosing the right stuff, like steel for heavy duty jobs or stainless steel for places that get rusty, is a big deal. For cylinders in excavators, being solid and strong is what it’s all about.
The Piston
The piston’s the one that takes the hydraulic fluid’s power and makes stuff happen. It’s a total boss, especially in construction gear where you’re moving heavy stuff all the time. The piston’s design, whether it goes one way or both ways, has to fit the job you’re tackling.
The Rod and Rod End
The rod’s what pushes and pulls the piston inside the barrel. You gotta pick its material and coating with care to handle all that stress. Steel or chromed steel is super common to keep wear low. Toss in some Ni/Cr electroplating, and you’ve got a rod that shrugs off rust and scratches.
The rod end hooks the rod up to the machine. It’s gotta deal with a ton of stress without bending or breaking. Picking the right rod end design keeps everything chill and reliable.
Seals and Seal Materials
Seals are what keep the hydraulic fluid from sneaking out. Imported sealing brands like NOK are a go-to for hydraulic cylinders. Those seals are tough as nails and can handle high pressure, which is super key for construction gear and excavators. Picking seals made from the right stuff is a big deal because bad seals can leak and mess up your machine’s vibe.
End Caps and Mounting Components
End caps seal up the cylinder barrel and keep the fluid locked inside. They also take on the forces the cylinder makes when it’s doing its thing. The material for end caps needs to be strong enough to handle high pressure.
Mounting components are what hold the cylinder to the machine. You gotta pick these with care so the connection stays tight and doesn’t wiggle loose when things get wild.
Matching Components for Different Applications

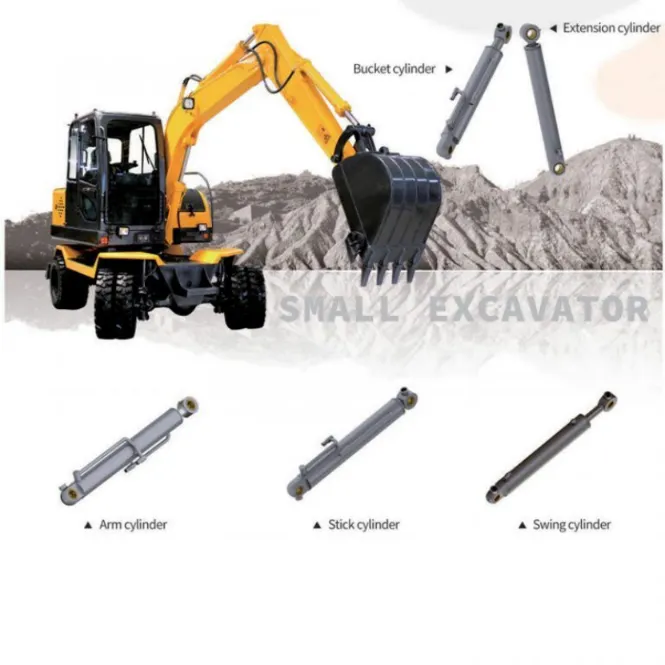

Different jobs need different cylinders and parts. Like, cylinders for excavators gotta handle way tougher stuff than others. Picking parts that fit the machine’s gig and the forces it’s gonna face makes it last longer and work like a champ.
Common Mistakes to Avoid When Choosing Hydraulic Cylinder Components
Picking the right parts for a hydraulic cylinder is a big deal, but folks mess it up sometimes. Here’s what to steer clear of:
- Forgetting if parts match: Parts that don’t fit the machine can make it run like crap or even break it completely.
- Ignoring where it’s used: If your machine’s in hot or wet spots, the parts gotta handle it.
- Skipping upkeep needs: Some parts need more love than others. Picking parts that need constant fixing can burn a hole in your pocket over time.
Tips for Maintaining Hydraulic Cylinder Components
Taking care of your hydraulic cylinders is the key to keeping them kicking for a long time. Here’s the scoop:
- Check stuff often: Look for leaks or worn out spots, especially on seals and rods.
- Oil things up: Slap some oil on moving parts to keep friction low and stop wear before it starts.
- Keep it clean: Dirt’s a total buzzkill for parts, so keep the hydraulic fluid clean and swap out filters when they’re grimy.
About Shining Hydraulic: A Leader in Hydraulic Cylinder Manufacturing
Shining Hydraulic is a top notch hydraulic cylinder maker that focuses on awesome solutions for all kinds of industrial jobs. They use imported sealing brands like NOK, which makes their seals super reliable. Their cylinders are built to work great in temperatures from -25°C to +120°C. Plus, they can whip up custom options for really extreme heat or cold.
FAQ
Q: What’s the most important part in a hydraulic cylinder for performance?
A: The piston’s the big shot here. It’s what makes the power and keeps things running smooth. But honestly, all the parts gotta team up to make it happen.
Q: How do I pick the right material for hydraulic cylinder parts?
A: It depends on the job and where it’s at. For rough spots, steel or stainless steel’s the way to go. For extra toughness, Ni/Cr electroplating keeps wear and rust at bay.
Q: Can I use hydraulic cylinders in super hot places?
A: Totally, but you need parts that can take the heat, like seals that don’t melt and materials with Ni/Cr electroplating for rods and pistons.
Q: How do I make my hydraulic cylinders last longer?
A: Keep up with regular care, oil stuff like you mean it, and pick parts that fit what your machine needs. That’ll keep ‘em going strong.
Q: What do I do if my hydraulic cylinder’s leaking?
A: Check out the sealing and see if the rod or barrel’s got any wear or damage. Swap out bad seals and fix stuff quick to avoid a bigger mess.
