Key Considerations When Selecting Agricultural Hydraulic Cylinders
Matching Cylinder Specifications to Equipment Requirements

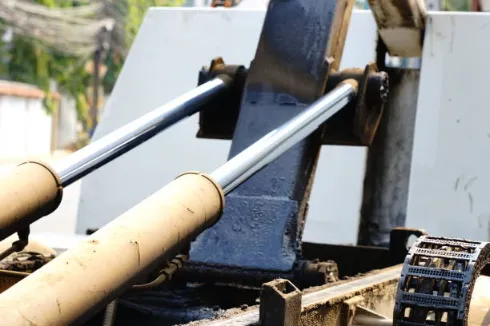

Selecting the proper agricultural hydraulic cylinder starts with fitting its details to the demands of the hydraulic farm equipment. Bore size, stroke length, and pressure rating are basic. These sizes need to match the system’s planned load and working conditions. For instance, tillage equipment usually needs bigger bore sizes to give more power. Meanwhile, harvesting tools might focus on shorter stroke lengths for small areas.
Hydraulic systems differ in tractors, seeders, sprayers, and other farm equipment parts. So, cylinder speed and force output should match the hydraulic pump’s flow rate and pressure. Compatibility covers hydraulic fittings, hoses, and port types too. If things don’t match, it can lead to poor performance or breakdowns.
Evaluating Cylinder Types for Agricultural Applications
Various jobs call for different cylinder types:
- Single acting cylinders: Great for tasks where gravity pulls the rod back, like basic lifting jobs.
- Double acting cylinders: These let you power movement both ways. They give good control. That’s especially handy in planting or harvesting, where steady motion matters a lot.
- Telescopic cylinders: These work well when you need a long stroke but have little room. You see them often in dump beds or mobile grain carts.
Each type fits certain motion needs. So, your choice depends on the job as well as the shape.
Importance of Mounting Options in Equipment Integration
The way you mount affects how the cylinder works in the machine:
- Clevis mounts give flexibility. They’re common for straight-line motion.
- Trunnion mounts help in turning jobs, like loader arms.
- Flange mounts offer strong holding for heavy loads.
The right mounting boosts the structure’s strength. It also cuts down wear on linked parts. Plus, easy access for service matters. A good mount can shorten time lost to fixes or swaps.
Performance Factors That Influence Cylinder Selection
Load Capacity and Duty Cycle Considerations
Farm jobs are tough. Cylinders have to handle big steady and moving forces. That’s key in heavy tillage or hauling tasks. Guessing too high on load capacity might feel safe. But it can raise costs without need.
Better to match the duty cycle closely. Jobs with lots of repeats need strong seals and close machining fits. Many starts and stops stress seals and rods a lot.
The hydraulic cylinders provide consistent and repeatable motion, ensuring an efficient harvesting process that is gentle on the crops.
Environmental Conditions Affecting Hydraulic Performance
Farm areas are often dirty and uneven. Dust, mud, water, and changing temperatures can harm cylinder work fast. Picking the best material helps out:
- Stainless steel or chrome-plated rods fight rust well.
- Rod wipers keep dirt from getting inside.
- Seals built for wide temperature ranges hold pressure through seasons.
Hydraulic cylinders must be corrosion-resistant and withstand extreme temperatures, so materials such as chrome-plated steel and stainless steel are preferred.
Fluid Compatibility and System Efficiency
Seals must work with the farm’s hydraulic fluid. It could be mineral-based or eco-friendly. Wrong seals wear out quicker and cause drips. Smart inside shapes cut friction. They also boost energy use.
Good filtering counts too. Dirty fluid speeds up wear inside. It hits piston areas hardest. Hydraulic cylinders use seals to prevent leakage and ensure that the hydraulic fluid remains clean and contained.
Application-Specific Cylinder Design Features
Tailoring Cylinders for Tillage, Harvesting, and Transport Equipment

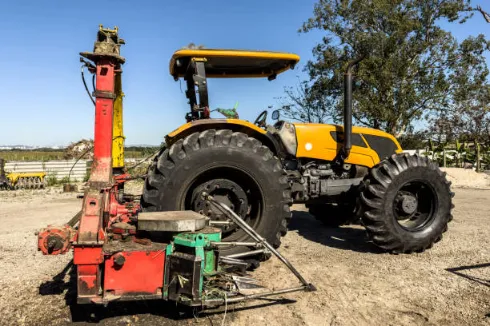

Each kind of hydraulic farm equipment has its own needs:
| Equipment Type | Design Focus |
| Tillage | High force output; rugged build |
| Harvesting Machines | Compact form factor; high cycling |
| Transport Equipment | Shock resistance; vibration durability |
In soil cultivation, hydraulic cylinders are used to operate plows and other tillage tools, ensuring they can deeply and thoroughly cultivate the soil, preparing it for planting.
Customization Options for Specialized Machinery Needs
Not every machine fits standard sizes. Custom agricultural hydraulic cylinder options include:
- Strokes you can adjust
- Ports in special spots
- Added sensors for tracking position
These aid precise farming. Feedback links cylinders to GPS or ECU setups.
Manufacturing Quality and Supplier Reliability in Agriculture Sector
Assessing Build Quality Through Material Selection and Machining Standards
The best cylinders use fine steel and exact machining:
- Honed barrels make piston slides smooth. They help seals last longer.
- High-quality welds fight tiredness from ongoing strain.
Seal quality is another key factor.
The Role of Trusted Manufacturers in Long-Term Equipment Performance
A good supplier can keep things running smooth. Companies like Shining Hydraulic shine by providing:
- Designs made for your exact use
- Sticking to world quality rules
- Steady delivery times
Manufacturers like Shining Hydraulic can provide customized solutions based on application data. Teaming with an experienced maker cuts out trial and error. It guarantees steady access to solid parts.
Maintenance Practices That Extend Cylinder Lifespan in Farm Equipment
Preventive Measures to Reduce Wear and Tear on Hydraulic Cylinders
Regular upkeep is key. Simple steps cover:
- Checking rod surfaces often for marks or bends
- Keeping to oil schedules to keep seals flexible
- Watching pressure to skip overload on pistons
The ability to effectively monitor and manage hydraulic systems allows farmers to identify and address problems before they become serious, thereby further improving overall operational efficiency.
Rebuild vs. Replacement: Making Cost-Efficient Decisions
You can rebuild if main parts are still good. But if inside wear goes past limits, swapping the whole thing saves money.
Integrating Hydraulic Cylinders Into Modern Farm Equipment Systems
Aligning Cylinder Performance With Smart Farming Technologies
Today’s hydraulic cylinders aren’t alone anymore. They’re tied into digital setups:
- ECUs let you set actions by program
- Sensors give instant feedback for control
- GPS ties in for jobs like line matching or changing rates
By utilizing IoT sensors and intelligent systems, digital integration enables real-time monitoring of hydraulic cylinders, thereby improving operational efficiency and reducing maintenance costs.
Supporting System-Level Efficiency Through Component Optimization
Efficiency covers more than just the cylinder. It’s about the whole hydraulic setup working together:
- Pumps need to fit cylinder flow speeds
- Valve reaction times shape the full system’s work
- Clean fluid helps every part last
Shining Hydraulic offers advice to fine-tune full systems. Not only single pieces.
Picking the right agricultural hydraulic cylinder means weighing machine needs against real-world settings and tech links. With a wide choice of items and custom help, Shining Hydraulic aids farmers in making these picks lead to lasting gains in output for all sorts of hydraulic farm equipment.
FAQ
Q: What are the key specifications to consider when choosing agricultural hydraulic cylinders?
Bore size, stroke length, pressure rating, speed, and force output must match the equipment’s load and hydraulic system.
Q: What types of hydraulic cylinders are used in agricultural applications?
Single-acting for gravity-return tasks, double-acting for controlled bidirectional movement, and telescopic for long strokes in limited space.
Q: Why is mounting style important for agricultural hydraulic cylinders?
Mounting options like clevis, trunnion, or flange affect integration, structural strength, wear reduction, and ease of maintenance.
Q: How do environmental conditions impact hydraulic cylinder selection in farming?
Dust, mud, water, and temperature extremes require corrosion-resistant materials like chrome-plated or stainless steel rods and robust seals.
Q: When should you choose custom agricultural hydraulic cylinders?
For specialized machinery needing adjustable strokes, custom ports, or integrated sensors for precision farming and GPS/ECU compatibility.
