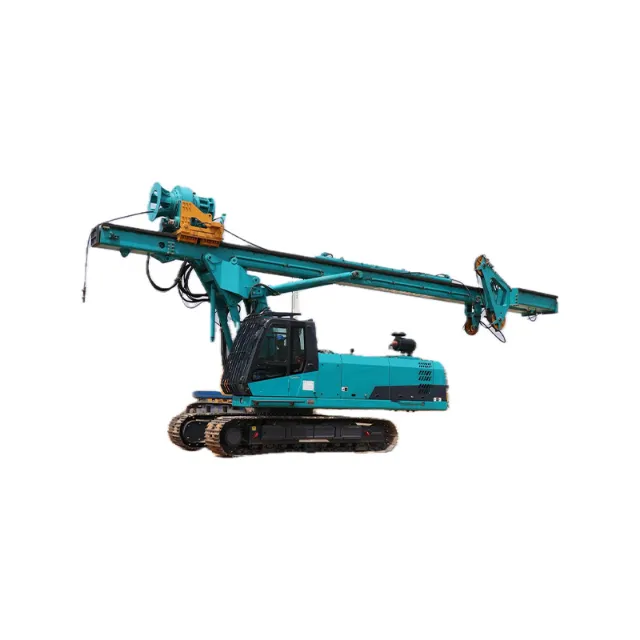

Horizontal directional drilling rigs work in brutal conditions. Long pushes, nonstop cycles, mud that eats everything, and side loads that try to snap rods in half. When a cylinder fails mid-bore, the whole pipe lay stops. Crews stand around. Rental clocks keep ticking. Penalties stack up.
Most contractors face the same fork in the road: grab a cheap, off-the-shelf standard hydraulic cylinder or pay more upfront for a custom directional drill hydraulic cylinder.
Standard cylinders promise fast delivery and low price tags. Custom cylinders promise longer life and less HDD rig downtime. But promises are cheap. Real-world downtime is expensive. So which choice actually costs less when the rig is sitting dead?
What Makes HDD Rig Hydraulic Cylinders Different?
HDD hydraulic cylinders live a harder life than cylinders on excavators or cranes. They see constant high-pressure cycles, abrasive drilling mud, sand that works like liquid sandpaper, and off-angle loads that most catalog cylinders never expect.
In HDD projects supported by Shining Hydraulic, most unexpected breakdowns were linked not to pumps or hoses, but to overloaded or mis-specified hydraulic cylinders.
The failures almost always traced back to seals that gave up too soon, rods that pitted or bent, or mounts that loosened under side load.
Standard catalog designs assume fairly clean oil, centered loads, and reasonable duty cycles. HDD rigs laugh at those assumptions. That gap explains why a cylinder that works perfectly on a backhoe can die in weeks on a directional drilling equipment.
Standard Hydraulic Cylinders on HDD Rigs: Quick Wins and Hidden Downtime
Standard hydraulic cylinders still have their place. They cost less upfront. You can get them tomorrow. For small rigs or non-critical functions like pipe-loader arms or support legs, off-the-shelf hydraulic cylinders for HDD rigs often do the smart choice.
But put them in the main thrust or pullback circuit and trouble starts fast. Stroke length rarely matches exactly, so you get end-of-stroke impacts. Mounting ears sit a few millimeters off, creating constant bending stress.
Seals and rod coatings designed for general construction fluid can’t handle bentonite and sand for long.
Result? Oil on the ground, rods scored, cylinders drifting under load. One contractor replaced the same thrust cylinder four times in seven months. Each change-out took 5–8 hours plus travel time for the service truck. Real cost of those “cheap” standard cylinders ended up over $38,000 in lost time alone.
Custom Hydraulic Cylinders for HDD Rigs: Engineered for Less Downtime

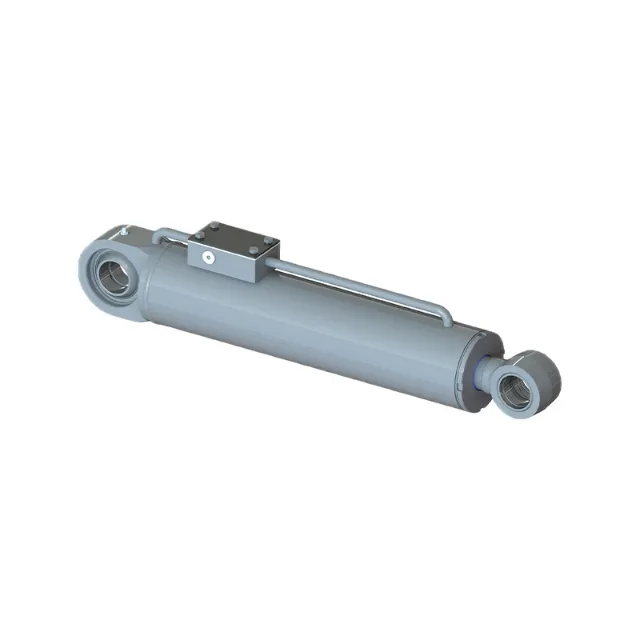

A proper custom hydraulic cylinder for HDD rigs gets built around the real job, not around a catalog page.
Key Design Features That Survive Real HDD Conditions
Thicker rods sized for actual side loads. Ceramic or advanced multi-layer chrome rod coatings that shrug off mud and sand. Heavy-duty wear bands and composite bearings that keep the rod running straight even when the bore tries to push sideways. Seal packages proven in drilling fluid for thousands of hours. Mounts machined to drop straight onto the rig without welding or shimming.
How Custom Design Directly Cuts Downtime Hours
A manufacturer like Shining Hydraulic tunes rod coatings, seal packages, and mounting styles based on actual HDD job data instead of generic catalog assumptions. The difference shows up as cylinders that simply keep working when standard ones would already be leaking.
Maintenance gets easier too. Extra sensor ports for pressure or position monitoring. Seal grooves designed for quick field kits. Some designs even leave room to change rod seals without pulling the entire cylinder off the rig.
Standard or Custom? A Decision Checklist for HDD Contractors
Answer these questions honestly:
- Does the rig regularly drill in rock or highly abrasive conditions?
- Has the same cylinder position failed more than twice in the past 12 months?
- Will a failure in this cylinder stop the entire drilling operation?
- Do you currently modify or shim standard cylinders to make them fit?
- Does waiting for replacement cylinders ever delay a job?
Three or more “yes” answers mean custom hydraulic cylinders for HDD rigs will very likely pay for themselves through reduced downtime within 1–2 years.
If you’re unsure how to interpret the answers, discussing recent HDD failures with a specialist manufacturer such as Shining Hydraulic can quickly reveal whether a custom design is justified.
Implementation Tips: Reducing Downtime Whatever You Choose
Even standard cylinders last longer with smart practices:
- Standardize on one or two bore/stroke combinations to keep spares on the trailer.
- Stock seal kits and chrome rods for the critical positions.
- Replace on hours or pressure cycles, not after failure.
For custom cylinders:
- Specify globally available seal brands so field kits stay easy to buy anywhere.
- Ask for spare seal kits and one backup rod shipped with the original order.
- Laser-etch part numbers and drawings on the cylinder so the new guy on night shift can order the right parts at 2 a.m.
Some manufacturers, including Shining Hydraulic, deliberately base custom HDD cylinders on globally available seal and bearing sizes to avoid locking customers into rare parts.
The Right Cylinder Is the One That Wastes Less Time
Choosing between custom vs standard hydraulic cylinders for HDD rigs is really choosing between two kinds of downtime: frequent and unpredictable, or rare and planned.
Busy contractors doing tough bores almost always save money and stress with properly engineered custom directional drill hydraulic cylinders. Smaller operations in easier ground can often stay with standard parts and still sleep fine.
Either way, start tracking actual downtime cost per failure. Once the numbers are clear, the right choice usually becomes obvious.
If repeated cylinder failures are currently eating your profit on HDD jobs, sharing that failure history with a specialist like Shining Hydraulic often turns those headaches into a cylinder that just works, bore after bore.
FAQ
Q: What is the difference between standard and custom hydraulic cylinders for HDD rigs?
Standard cylinders are off-the-shelf units, while custom cylinders are engineered for HDD loads, mounting, and sealing requirements to reduce downtime.
Q: Do custom hydraulic cylinders reduce downtime on directional drills?
Yes. Custom HDD cylinders typically have stronger rods, better sealing systems, and optimized mounting that help prevent leaks and failures in tough drilling environments.
Q: Are off-the-shelf hydraulic cylinders good enough for HDD rigs?
They can work for non-critical functions, but on high-load or high-frequency actions, standard cylinders often wear out faster and cause unexpected downtime.
Q: When should I choose a custom hydraulic cylinder for an HDD machine?
Choose custom designs if your rig faces heavy loads, frequent failures, harsh mud/sand conditions, or if downtime costs are high.
Q: Do custom hydraulic cylinders cost more than standard ones?
Upfront costs are higher, but many HDD contractors save money overall because fewer breakdowns mean lower downtime and fewer replacements.
