Understanding Hydraulic Cylinder Components
Understanding Hydraulic Cylinder ComponentsKey Parts of Hydraulic Cylinders and Their Roles

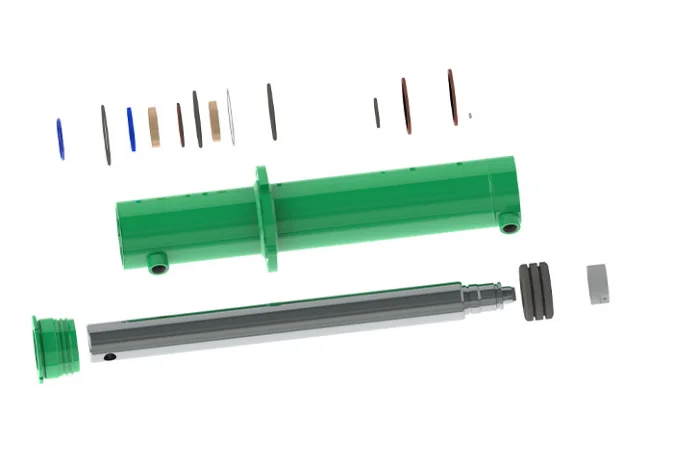

Hydraulic cylinders are vital in many machines. They turn fluid power into straight-line force. These devices include several key parts. Each part has a specific job. The cylinder barrel is the main body. It holds all internal components of a hydraulic cylinder and keeps hydraulic fluid under pressure. The piston slides inside the barrel. It splits the barrel into two sections. The piston uses hydraulic pressure to create movement.
The piston rod links to the piston. It stretches outside the cylinder to pass force to an object. Seals stop fluid from leaking. They also keep pressure steady in the system. End caps seal the cylinder’s ends. They often have ports for hydraulic lines. The rod gland supports the piston rod. It ensures smooth movement and a tight seal as the rod moves.
Why Proper Maintenance Matters for Hydraulic Cylinder Components
Taking care of hydraulic cylinder components is key. It keeps systems running well and lasts longer. Ignoring maintenance can cause parts to fail. This leads to expensive fixes or work stoppages. Regular care prevents seal wear. It lowers the risk of dirt entering the system. It also keeps moving parts slick for top performance.
Good upkeep reduces friction and wear on parts like pistons and rods. This saves money over time. It also makes operations safer by cutting the chance of sudden breakdowns.
Common Problems with Hydraulic Cylinder Components
Spotting Signs of Wear and Damage
Catching early wear in hydraulic cylinder components saves bigger troubles later. Look for oil leaks near seals. Slow performance or odd noises during use are red flags. Check for scratches on rods or barrels. A drop in pressure might mean internal leaks or worn seals.
What Causes Hydraulic Cylinder Component Failures
Many factors lead to hydraulic cylinder component failures. Dirt or debris in the system is a big problem. It can harm seals and other parts. Overloading pushes rods or pistons too hard. Lack of lubrication increases friction and wear. Poor setup can cause uneven stress on components of a hydraulic cylinder.
Extreme heat, cold, or corrosive materials also harm parts over time. Regular checks and following guidelines help avoid these issues.
Shining Hydraulics has professional technology and equipment. The quality of the hydraulic cylinders they produce is far ahead in the industry
Routine Maintenance for Hydraulic Cylinder Components
Cleaning and Checking Hydraulic Cylinders
Keeping hydraulic cylinders clean is a must. Wipe off dirt or debris from surfaces. This stops contamination from entering through seals or ports. During checks, look for dents on barrels or scratches on rods. Spot loose fittings that could weaken the system.
Examine seals for oil leaks. Catching leaks early allows quick fixes. This prevents small problems from growing bigger.
Lubrication for Best Performance
Lubrication cuts friction in hydraulic cylinder components. It boosts efficiency and prevents early wear. Use high-quality lubricants made for hydraulic systems. Follow the maker’s advice on type and timing.
Apply lubricant evenly to all moving parts. This ensures steady performance. Don’t use too much grease. Excess can attract dirt, which harms internal components.
Inspecting and Replacing Seals
Seals keep pressure in hydraulic cylinders. They stop fluid from leaking outside or between chambers. Check seals often for cracks or hardening from heat. Look for deformation caused by high pressure.
Replace damaged seals right away. Use high-quality seals that match your system’s needs. Install them carefully. Poor fitting can cause issues soon after repairs.
Preventive Steps to Prolong Hydraulic Cylinder Component Life
Watching Operating Conditions to Prevent Overloading
Hydraulic cylinder components work within set limits. Going beyond these limits causes early wear or failure. Overloading happens when the system faces too much force. Check pressure, load weight, and speed often. This keeps the system in safe ranges. Sensors and tools can give real-time data. They help spot overloading before it damages parts.
Train operators well. Teach them how to use equipment correctly. This lowers human errors that lead to overloading.
Storing Components Properly to Protect Them
Storing hydraulic cylinders right keeps them in good shape. Bad storage exposes components of a hydraulic cylinder to moisture or dust. This leads to rust or material damage. Store cylinders in a clean, dry place with steady temperatures.
Cover open ports and protect exposed rods. This blocks contamination during storage. Check stored parts now and then. This catches problems early.
Choosing High-Quality Replacement Parts
When fixing hydraulic cylinder components, use top-notch parts. Low-quality replacements may not fit well or work right. They can fail early. High-quality parts match the original maker’s standards. They ensure smooth operation and reliability.
Buy from trusted suppliers with certified products.
Troubleshooting Hydraulic Cylinder Component Issues
Finding Leaks in Hydraulic Systems
Leaks are common in hydraulic systems. They lower efficiency and can harm the environment. To find leaks, check seals, fittings, and connections for damage. Use tools like ultrasonic sensors or dye tracers. These help locate hidden leaks not seen in regular checks.
Fix leaks quickly. This prevents damage to internal components of a hydraulic cylinder. It also keeps system pressure steady for top performance.
Fixing Problems with Piston Rods and Bearings
Piston rods and bearings face heavy stress. Scratches or dents on rods can ruin seals. This causes leaks and poor efficiency. Worn bearings lead to misalignment or uneven loads in the cylinder.
Check these parts often. Polish small scratches on rods. Replace bearings before they fail. This keeps operations smooth and avoids costly fixes.
Correcting Misalignment Issues
Misalignment hurts hydraulic cylinder performance. It happens when the cylinder isn’t lined up with its load or mounts. This causes uneven stress on seals, rods, and other parts. Over time, it speeds up wear.
To fix misalignment, secure mounting brackets properly. Align them with the cylinder’s axis. Use alignment tools during setup. This ensures precise positioning and reduces strain.
Benefits of Regular Maintenance for Hydraulic Cylinder Components
Boosting Equipment Efficiency and Output
Routine care keeps hydraulic cylinders running at their best. It tackles small issues before they grow. Cleaning surfaces, greasing parts, and checking leaks are easy steps. They improve system performance.
Efficient equipment uses less energy. This saves money over time while delivering hydraulic cylinders steady results.
Cutting Downtime and Repair Costs
Sudden breakdowns halt work. They lead to expensive emergency fixes. Regular maintenance lowers these risks. It keeps components of a hydraulic cylinder in good condition. Planned checks let technicians spot issues early. They can fix them during scheduled breaks, not during key tasks.
Maintenance programs save money long-term. They also make operations more reliable.
Extending Hydraulic Cylinder Lifespan
Well-kept hydraulic cylinders last longer. They face less wear over time. Follow maintenance schedules. Use quality replacement parts when needed. This stretches equipment life significantly.
Longer-lasting cylinders maximize your investment. They also improve safety by reducing sudden failures.
FAQs
How do I stop overloading my hydraulic cylinder components?
Track pressure, load weights, and speeds. Train operators to stay within safe limits.
What should I check for when finding leaks in hydraulic systems?
Look at seals, fittings, and connections for wear. Use sensors or dye tracers for hidden leaks.
Why is proper storage key for hydraulic cylinders?
It protects against moisture, dust, or temperature changes. These can cause rust or damage.
How often should I maintain my hydraulic cylinders?
It depends on use. Heavy-use systems need monthly checks. Others may need checks every three months.
