Sources of Hydraulic Noise in Cylinder Assemblies
Fluid Borne Noise in Hydraulic Systems
Hydraulic systems often deal with fluid borne noise from pressure pulsations. These pulsations usually come from parts like pumps and control valves. Then, they travel through the hydraulic fluid. When flow paths change suddenly or line up poorly, turbulence grows. This adds to louder noise.
Cavitation happens when vapor bubbles burst inside the fluid. It creates sharp, metallic banging sounds. Cavitation or aeration issues can cause unusual pressure differences in the cylinder.
Air bubbles in the system respond to these pressure shifts. They lead to implosions and explosions. Plus, bad hose routing and cheap fittings make these problems worse. They boost the disturbances instead of calming them.
Structure Borne Noise Transmission
Structure borne noise starts from mechanical vibrations of moving parts, such as pistons or rods. These vibrations pass through the cylinder’s body and reach the machine frame.
Stiff connections boost resonance effects. This happens especially when frequencies match the structure’s natural frequency. The cylinder’s material matters too. Denser or harder materials send vibrations more easily. Unless engineers design them for damping, that is.
Air Borne Noise Emission from Hydraulic Equipment
Vibrations can hit a surface and turn into audible noise in the air around it. Shaking cylinder bodies, brackets, or exposed lines act as unwanted sound makers. Placing hydraulic cylinders in open spots without sound barriers makes airborne noise stand out more. Enclosures and damping treatments on surfaces cut down how much sound gets out into the work area.
Techniques for Reducing Fluid Borne Noise
Optimizing Flow Paths and Component Layout
Smooth pipework cuts down on turbulence and pressure spikes. It helps keep things steady. Lining up pumps, valves, and cylinders in a smart way supports laminar flow. This avoids quick turns that raise noise. Basic changes, like using curved bends over sharp elbows, work well.
Using Accumulators and Dampers to Absorb Pulsations
Accumulators help a lot in busy hydraulic cycles. They soak up pressure fluctuations before these spread through the system. Inline dampers or pulsation dampeners tackle high frequency pressure waves. Those waves often cause high pitched whines or buzzing sounds.
Selecting Low Noise Hydraulic Components
Some pumps have low internal leakage by design. This cuts down on pulsation noise while running. Valves that open and close slowly prevent sudden pressure jumps. Otherwise, those jumps might create water hammer effects or mechanical shock loads.
Methods to Minimize Structure Borne Noise
Improving Mounting Techniques for Cylinders and Supports
A basic way to cut structure borne noise is good isolation. Mounting brackets that isolate stop vibrations from reaching machine frames directly. Flexible couplings between parts absorb impact energy too. This lowers stress on nearby structures.
Material Selection for Vibration Damping
Composites or materials with built in damping layers let cylinder assemblies soak up more energy during work. In some newer designs, folks add internal coatings to the cylinder housing. These help block vibration spread even more.
Reducing Impact Loads During Operation Cycles
Cushioning at the end of a cylinder stroke cuts noise from sudden forces. Controlled speed changes, done with proportional valves, ease mechanical stress peaks. These peaks often cause clunking sounds when switching directions.
Strategies to Control Air Borne Emissions from Cylinders
Designing Enclosures for Acoustic Isolation
Sound insulated covers around hydraulic cylinders trap radiated noise well. These covers need to let air flow to avoid heat buildup. But they should include acoustic vents or baffles to block sound from escaping.
Surface Treatments to Minimize Radiated Sound Energy
Coatings that fight vibration and rough finishes on cylinder surfaces scatter sound waves. They lower overall sound levels. Such treatments help a lot in tight spaces where big enclosures won’t fit.
Managing Transient Phenomena in Hydraulic Systems
Addressing Water Hammer Effects in Cylinder Operations
Water hammer often causes hydraulic noise. It strikes when valves shut fast, sending shock waves through the fluid. Sudden valve closures create those shock waves. They raise noise levels. Deceleration control valves fix this. They slow fluid movement bit by bit. This avoids sharp pressure shifts.
Controlling Energy Release from Compressed Fluid Columns
Hydraulic fluids have a high bulk modulus. So, they hold a lot of energy when squeezed. If that energy bursts out too fast, it makes loud noise pops. Decompression valves handle this release. They cut noise and help the system last longer.
System Level Approaches to Noise Reduction
Integrating System Design with Acoustic Performance Goals
Building noise control into the design from the beginning works better than fixing it later. Simulation tools let engineers guess how vibrations will move under real loads. This helps create quieter systems right away.
Coordinating Component Selection Across the System Architecture
Choosing parts that work well together is key. Matching pump output to actuator needs stops overpressure cycles. Those cycles cause noise and wear out parts. Steady flow through valves, hoses, and cylinders makes operation smoother.
| Component Match | Potential Noise Reduction |
| Pump Actuator Flow Rate Match | Reduces overpressure cycles |
| Gradual Valve Operation | Avoids water hammer |
| Correct Hose Sizing | Lowers flow turbulence |
Considerations for Maintenance and Long Term Performance
Monitoring Wear Induced Noise Increases Over Time
As seals wear down or metal parts get scratched inside, the system’s sounds shift. Seal wear or internal scratches change how the system sounds. Checking sound patterns spots problems early. This stops bigger failures.
Preventive Measures to Sustain Low Noise Levels

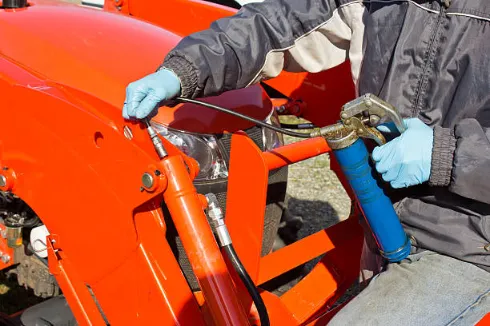

Regular upkeep affects more than just performance. It shapes sound too. Changing fluid on schedule keeps damping strong. Making sure mounting bolts stay tight avoids extra shaking from loose parts.
The Role of Specialized Manufacturers in Supporting Quiet Operation
Leveraging Expertise in Custom Cylinder Design Solutions
Custom hydraulic cylinders can boost noise reduction a lot. Special shapes tackle exact sound issues. Companies like Shining Hydraulic team up with OEMs. They tweak system setup for quieter work.
Providing System Level Support for Hydraulic Assemblies
Makers like Shining Hydraulic give advice on matching parts. Their engineers share tips on vibration isolation. These fit specific job settings.
Trends Influencing Future Developments in Hydraulic Noise Control
Advances in Sensor Based Monitoring Technologies
Real time checks let workers spot odd vibrations or cavitation early. Before it turns into a real hassle. Built in sensors catch strange shakes while the system runs.
Innovations in Materials and Manufacturing Techniques
3D printing lets builders add sound damping right into cylinder walls. New composite materials give better sound blocking without extra weight.
FAQs
Q: What causes hydraulic cylinder noise?
Fluid turbulence, cavitation, vibration transmission, and abrupt pressure changes are typical sources.
Q: How can I reduce fluid borne hydraulic noise?
Use accumulators, smooth flow paths, and low noise valves or pumps.
Q: Why do hydraulic cylinders knock during operation?
You will often hear these noises when there is a cavitation problem in the cylinder.
Q: What role does Shining Hydraulic play in noise reduction?
Shining Hydraulic collaborates with OEMs to refine system integration for quieter performance.
Q: Can worn seals increase noise levels?
Seal degradation or internal scoring alters system acoustics.
