Double-acting hydraulic cylinders are main parts in today’s machines. They allow managed, strong movement in both ways. Their accuracy and flexibility make them vital in fields like building, digging, and farming. Knowing how they work helps workers and fixers improve setup results and dependability.
How Double-Acting Hydraulic Cylinders Operate
Mechanism of Action
A double-acting hydraulic cylinder uses pumped liquid to shift a piston during push and pull moves. Unlike single-acting cylinders that depend on weight or outside push for coming back, this type can apply strength in two paths. The liquid gets sent back and forth to each side of the piston area through guide valves. This creates a two-way power result.
This setup lets easy switches between shoving and tugging tasks. It ensures steady handling even with big weights. The steady flow of liquid also leads to even working pace and less stop time.
Role of Hydraulic Cylinder Seals
Hydraulic cylinder seals are key for holding inside push and stopping drips that might hurt results. They make sure the liquid stays inside the setup while blocking dirt. Good seals help keep push amounts during work. They boost total output and lasting time.
Various seal kinds do certain jobs:
- Piston seals maintain separation between pressure zones inside the cylinder.
- Rod seals prevent leakage along the piston rod during extension or retraction.
- Wiper seals keep dust and debris from entering the system when the rod retracts.
Manufacturers like Shining Hydraulic, a professional hydraulic cylinder manufacturer serving mechanical equipment industries, focus on better sealing methods. These enhance toughness under strong push states.
Key Functions and Benefits of Double-Acting Hydraulic Cylinders
Bidirectional Force Generation
The top trait of a double-acting cylinder is its skill to make strength in both paths — out (stretch) and in (pull back). This fits well for uses where handled movement is needed on both moves, such as holding setups, raising tools, or guiding groups. In digging tasks, for example, hydraulic cylinders are mechanical actuators driven by pressurized fluid (usually oil or water). They are used to generate linear force and motion in a variety of industrial applications, including mining. This two-way skill ensures good power supply no matter the path.
Precision and Control
Double-acting cylinders permit exact placing because liquid push can be tweaked finely through guide valves. This accuracy is crucial in auto setups or machines needing spot-on lineup or repeated movement rounds. Hydraulic cylinders enable precise control of force and movement. They allow mining operators to perform tasks accurately and efficiently. That same idea works across factory automation where tiny measures matter.
Efficiency and Speed
Steady liquid flow in both spaces leads to quicker round times compared with single-acting designs. Energy gets used in both paths rather than depending on outside forces for return movement. So, energy waste drops. The outcome is better working output — a plus that turns straight into less fuel use or lower power need in liquid setups run by pumps or motors.
Versatility Across Industries
Double-acting cylinders adjust well to various spots — from moving building machines to fixed making presses. Their tough build backs both heavy jobs and exact duties alike. Shining Hydraulic adds these cylinders into custom setups made for certain work needs. It mixes small build with high power amount for many use cases.
Essential Components of Double-Acting Hydraulic Cylinders
Hydraulic Cylinder Piston
The hydraulic cylinder piston changes liquid energy into work strength by splitting the inside space into two separate push areas. When pumped liquid enters one side, it shoves the piston toward the other end. This produces straight movement used to lift, shove, or squeeze loads well.
Cylinder Barrel and End Caps
The barrel gives main housing that leads piston shifts while keeping lineup under weight strain. End caps shut each end of the barrel. They hold push inside the setup while backing fitting ways suited to certain uses.
Applications of Double-Acting Hydraulic Cylinders
Heavy Equipment and Construction
In diggers, loaders, cranes, and pushers, double-acting cylinders manage repeated raising and dropping rounds under tough weights. Their two-way movement ensures steady handling during tasks like bucket slanting or arm bending.
Mining Machinery
The mining field has a big role in today’s world. It supplies needed items for money growth and building. Behind this key area are many smart designs that help good digging methods. Hydraulic cylinders are one such design part—strong and trusty tools that do several jobs in digging work. These cylinders stand up to rough spots including dust, shaking, and very hot or cold while giving steady results in drills, breakers, or haul trucks.
Hydraulic cylinders get built to handle these hard states. They ensure lasting results and trust. This strength makes them vital for under-ground digging where fix access is small but trust is key.
Agricultural Machinery

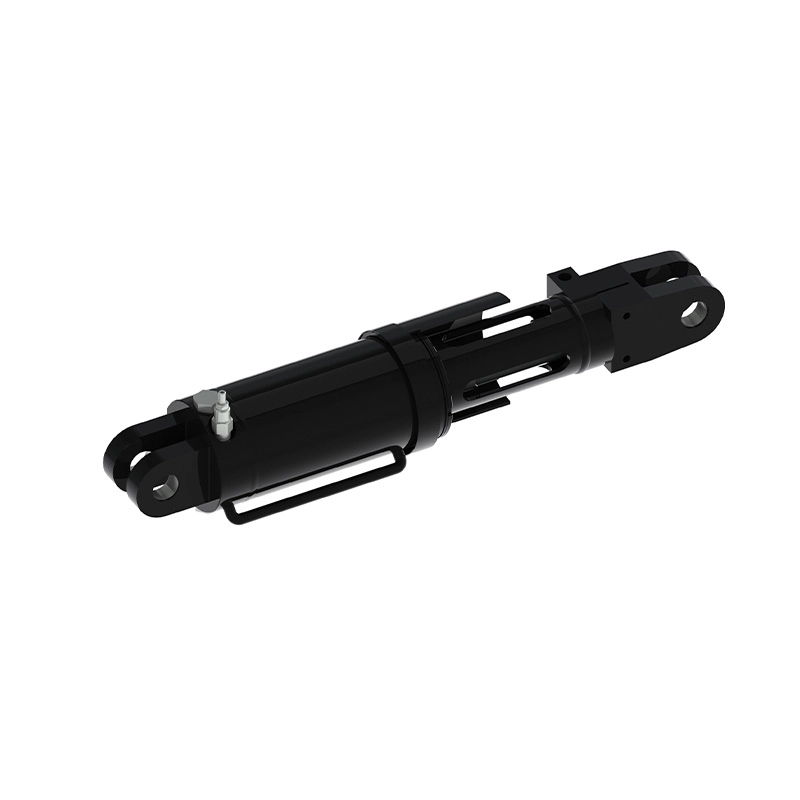

In farming tasks, liquid setups play a big part in updating tool output. In today’s farming, hydraulic cylinders are vital for boosting output and work of different machines. Tractors use double-acting cylinders for guiding control or tool raising. Harvesters count on them for front placing. Watering gates depend on them for exact water handling.
Hydraulic cylinders give exact and strong movement. They ensure trusty and good running of farming machines under rough states. In these uses, their skill to give repeated movement with little wear ensures long trust with low fix costs.
Shining Hydraulic, known for its engineering expertise in designing durable double-acting units with advanced sealing solutions, continues to support industries seeking reliable motion control components that meet demanding operational standards.
FAQs
Q: What distinguishes a double-acting hydraulic cylinder from a single-acting one?
A double-acting cylinder produces force in both extension and retraction using pressurized fluid on each side of the piston.
Q: Why are hydraulic cylinder seals so important?
They prevent internal leakage and contamination while maintaining pressure balance within the system.
Q: Can double-acting cylinders be used underwater or in corrosive environments?
Yes—with proper materials like stainless steel barrels and corrosion-resistant seals designed for marine or chemical exposure.
Q: How do you ensure long service life for these cylinders?
Regular inspection of seals, proper filtration of hydraulic oil, and correct alignment during installation extend lifespan significantly.
Q: Which industries rely most heavily on double-acting cylinders?
Construction machinery, mining equipment, agricultural tools, manufacturing presses, and marine hydraulics all depend on their bidirectional force capability.
