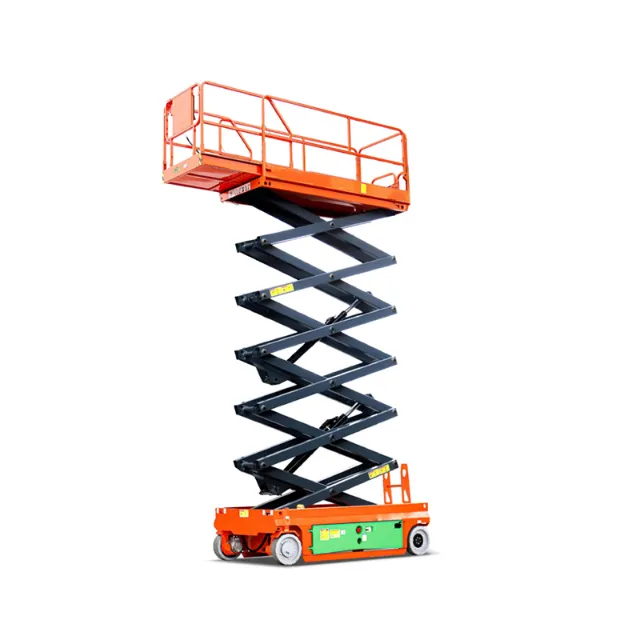

Lifting platforms are vital in places like warehouses, factories, and building sites. They haul heavy stuff, sometimes tons, with just a button press. But when one side tilts or moves slower, it’s not just annoying. It’s risky and a pain to fix.
What Uneven Lifting Looks Like
Imagine a platform starting to rise. The left side climbs quicker than the right. Or maybe one corner stays low, making a tilt that spooks workers. This wonky motion pops up a lot, especially in systems with multiple cylinders. It’s not just about looks, tilting platforms can tip loads or harm the structure. Operators often spot this during heavy lifts or after months of use.
Why This Issue Matters
Uneven lifting isn’t just ugly. It strains the platform’s frame, causing cracks or bends over time. Hydraulic parts, like cylinders, hoses, and valves, get worn out faster too. Worse, a tilting platform can hurt workers or wreck goods. Shining Hydraulic, a pro in platform systems, often links these problems to fluid issues or alignment troubles. Fixing it early saves cash and stress.
The Core Reasons Behind Uneven Lifting
Hydraulic System Related Causes
Air or Gunk in the Hydraulic Lines
Air bubbles in hydraulic fluid mess things up, like hiccups in a chat. They squish differently than liquid, so one cylinder moves faster or slower. Dirt or metal bits can clog lines too, messing with pressure balance. This makes one side of the platform race ahead, sometimes by inches.
Uneven Fluid Flow Between Cylinders
In setups with multiple cylinders, fluid should split evenly. But tiny differences, like a longer hose or a mismatched flow restrictor, throw things off. It’s like pouring water into two cups at once; one fills faster if it’s not set up right. Small flow differences add up during a lift.
Pressure Compensator or Valve Issues
Check valves and pressure compensators keep things even. If they break, one cylinder might get extra pressure. A stuck valve or worn seal slows one side down, leaving the platform lopsided. Regular checks catch this, but it’s easy to miss in a busy shop.
Mechanical and Structural Factors
Cylinder Mounting Misalignment
Cylinders must line up just right. If they’re off by even a smidge, say, a couple degrees, side loading happens. This slows one side down. It’s like pushing a heavy cart with a wobbly wheel; it fights you. Bad setup or frame wear often causes this.
Worn or Busted Bearings and Pins
Bearings and pins take a beating. When they wear out or get damaged, they cause uneven drag. One cylinder glides smooth, while another sticks, even with the same pressure. Swapping these small bits helps a ton, but they’re often ignored ‘til things get bad.
Load Placement on the Platform
Sometimes, the problem’s not the system, it’s the load. A pallet heavier on one side makes the platform tilt, even if hydraulics are fine. Operators might not notice ‘til the lift moves. Uneven loads are easy to fix but often missed in a rush.
Diagnosing the Source of Uneven Lift
Finding the cause takes care. Jumping to fixes can waste time on wrong parts.
Visual Inspection and Load Testing
Start easy: look at the platform. Is the load centered? Are cylinders out of whack? Try a test lift with an even load. If it still tilts, the issue’s likely hydraulic or mechanical, not the operator’s fault. A quick check can spot obvious stuff like bent pins or leaky seals.
Monitoring Cylinder Pressure and Flow
Put temporary pressure gauges on each cylinder. Live data shows if one’s getting more push than another. A 50 PSI difference can cause tilt. Flow meters can catch uneven fluid delivery too. It needs tools, but it beats guessing.
Checking Hydraulic Fluid Condition
Open the reservoir and look at the fluid. Bubbles or foam mean air’s sneaking in, messing with pressure. Cloudy or gritty fluid points to dirt. Cavitation, when fluid turns to vapor under low pressure, can also mess things up. Shining Hydraulic pros say slow, careful checks beat swapping cylinders. Most issues come from fixable imbalances, not bad cylinders.
Engineering Solutions and Preventive Measures
Once you know the cause, fixes split into two groups: balancing hydraulics and upgrading the system.
Improving Hydraulic Balance
Use Flow Divider Valves for Synchronization
Flow divider valves act like traffic directors for hydraulic fluid. They split flow evenly to cylinders, no matter the pressure. Adding these fixes uneven lifting in multi cylinder setups. They’re not perfect, but they help a lot for steady lifts.
Pick Matching Hose Length and Size
Hoses gotta be the same length and width. A longer hose slows fluid down, like a kink in a garden hose. Switching out mismatched hoses can level things out. Using standard hoses from the start avoids this hassle.
Add Load Sensing Valves
Load sensing valves tweak pressure based on the load’s weight and spot. If a heavy item shifts, they adjust to keep the lift even. These are great for platforms with unpredictable loads, like in shipping yards.
Enhancing Cylinder and System Design
Choosing Cylinders with Built In Balance Control
Some new cylinders have internal tricks to sync lifting. They cost more but shine in tough jobs. They cut down on extra valves and make upkeep easier. Shining Hydraulic says these designs slash uneven lifting in heavy platforms.
Routine Maintenance Schedule
Regular checks stop problems early. Look at pins, seals, and bearings every month. Swap hydraulic fluid every 1,000 hours or once a year, per the maker’s rules. A bit of care keeps tilt and wear at bay.
Temperature and Environment Considerations
Hydraulic fluid acts different in hot or cold weather. Thick or thin fluid can slow one cylinder while speeding another. Using fluid suited for the climate, like ISO 46 for mild weather, keeps things steady. In cold spots, warm the system before big lifts.
Ensuring Platform Safety and Reliability
A level platform isn’t just about working right; it’s about keeping folks safe. Uneven lifting can tip loads or hurt people. A few habits help.
Operator Training and Load Management
Teach workers to check load placement before lifting. A fast glance can stop uneven strain. Tell them to report any tilt, even small ones, to catch issues early. Good habits save gear and people.
Periodic System Calibration
Test sync every few months. Use gauges to check pressure and flow balance. Tweak valves if needed. This keeps the platform level as parts wear. It’s a chore, but cheaper than fixing a busted frame.
Shining Hydraulic is known for fine tuning cylinder systems. Their work on smooth, steady, and safe lifts helps operators worldwide dodge uneven platform woes. Quality parts and regular care keep systems running smooth.
FAQ
Q: Can uneven lifting damage the platform for good?
Yes, constant uneven lifting can crack the frame or bend parts. It also wears out cylinders and seals faster, leading to pricey fixes.
Q: How often should hydraulic fluid be checked?
Check fluid levels monthly. Look for contamination or air every 3-6 months, depending on use. Follow the maker’s plan for full swaps.
Q: Are flow divider valves needed for single cylinder platforms?
Nope, single cylinder setups don’t need them since there’s no sync issue. Just focus on load placement and fluid condition.
Q: What’s the easiest way to spot uneven lifting?
Watch the platform during a test lift. If one side rises faster or tilts, stop and check. Gauges can confirm hydraulic issues, but eyes work for a start.
Q: Can uneven lifting be fixed without new parts?
Lots of times, yeah. Clear air from lines, tweak valves, or shift the load to fix it. Alignment issues might just need a nudge, not new gear.
