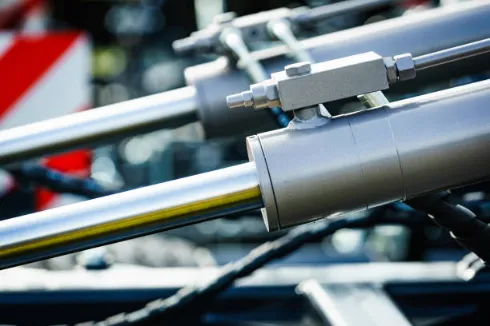

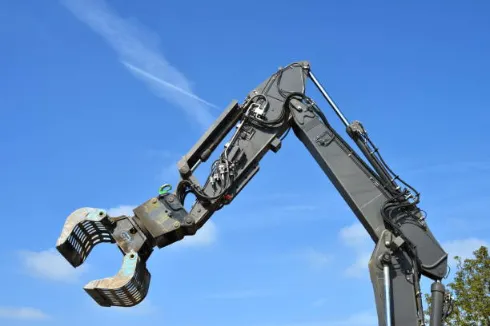

Grapples play a big role in heavy machinery, from construction sites to forestry operations. They grab, lift, and move loads with ease. At the heart of any grapple sits the hydraulic cylinder.
This part powers the clamping action and keeps things running smooth. But wear happens over time. Spotting when to replace it saves downtime and headaches. So, how do you know it’s time?
Common Signs Your Grapple Hydraulic Cylinder Needs Replacement
Hydraulic cylinders don’t fail overnight. They give warnings. Catching these early avoids bigger problems down the line. Here are the main red flags.
Leaks and Seal Failure
Oil leaks top the list. A puddle under the grapple or wet spots on the cylinder mean seals are shot. Seals keep fluid in and contaminants out. When they fail, pressure drops, and the grapple weakens. Don’t ignore even small drips—they worsen fast.
Loss of Gripping Power or Slow Movement
If the grapple struggles to hold loads or moves like it’s in slow motion, the cylinder might be the culprit. This comes from internal wear or low fluid levels. Test it under load. Weak performance? Time to check deeper.
Scratches or Corrosion on the Piston Rod
Look at the rod surface. Scratches, pits, or rust spell trouble. These damage seals as the rod moves in and out. Corrosion often hits in wet or salty environments. A quick visual inspection reveals a lot.
Unusual Noises, Overheating, or Vibration
Hear grinding or whining? Feel extra heat or shakes? These point to issues like bent rods or air in the system. Overheating cooks seals quicker. Vibration loosens fittings. Address these before they lead to total breakdown.
- Oil Leak – Cause: Worn seals or cracked housing.
- Weak Grip – Cause: Low pressure from internal leaks.
- Rod Damage – Cause: Impact or poor lubrication.
- Noises/Heat – Cause: Friction or contamination.
Spotting these keeps equipment reliable. Sometimes a fix is simple, but often replacement is smarter.
Causes of Cylinder Failure: Beyond Normal Wear
Normal use wears cylinders down, sure. But other factors speed it up. Dig into these to prevent repeats.
Contaminated fluid is a killer. Dirt, water, or metal bits sneak in and grind internals. Pressure overloads happen when loads exceed specs—pushing the system too hard cracks components. Improper installation? That’s common. Misaligned mounts stress the cylinder unevenly.
Seals age out from heat, cold, or chemicals. Dust in the air clogs filters. Extreme temps make materials brittle. Shining Hydraulic‘s engineering team notes that improper alignment during installation often accelerates internal wear in grapple cylinders. Yeah, it’s a detail, but skipping it costs big.
Troubleshooting starts with clean oil and right pressures. Preventive checks catch these early. Skip them, and failures pile up.
Seal Kits and Their Role in Cylinder Longevity
Seal kits are the unsung heroes in hydraulic cylinders. They include O-rings, wipers, and backups made from tough stuff like NBR or PTFE. These keep fluid sealed and rods clean.
Over time, seals harden or crack. This lets leaks start and efficiency drop. Grip weakens, movements lag. Judging when to swap seals versus the whole cylinder? If damage is just seals, a kit fixes it cheap. But if the barrel or rod is worn, go full replacement.
Many manufacturers, including Shining Hydraulic, use NOK and Hallite seal kits to balance durability and smooth motion in grapple hydraulic cylinders. Quality materials matter. Cheap ones fail sooner. Install right—clean everything first. A good kit extends life by years.
Think about usage. Heavy-duty ops need frequent checks. Light use? Seals last longer. Weigh the signs from earlier sections.
Replacement vs. Rebuild: Making the Right Decision
Stuck between swapping the whole cylinder or rebuilding it? Both have pros. Replacement means a fresh unit, quick install, and full warranty. But it costs more upfront. Rebuilds reuse the core, swap worn parts like seals or rods. Cheaper, but takes time and skill.
Costs vary. A rebuild might save 30-50% but needs downtime. Parts availability counts—OEM ones fit perfect, last longer. Aftermarket? Cheaper, but quality dips sometimes.
Decision time: Minor leaks or seal wear? Rebuild. Major rod bends or barrel scores? Replace. Experienced maintenance teams often consult OEM suppliers like Shining Hydraulic when evaluating whether a rebuild or replacement provides better long-term value.
Factor in machine age too. Old equipment might not justify rebuilds. Newer ones benefit from them. Balance cost, time, and expected life.
Preventive Maintenance: Extending the Life of Your Cylinder
Why wait for failure? Regular care stretches cylinder life. Start simple.
Keep hydraulic oil clean. Change filters often. Dirty oil chews up seals. Test for contaminants quarterly. Swap seals on schedule. Don’t wait for leaks. Every 2,000 hours or so, depending on use.
Check alignment. Mounts should line up straight. Crooked setups cause uneven wear.
Avoid overloads. Stick to rated capacities. Impacts from drops damage rods.
- Clean the system before new fluid.
- Monitor temperatures—keep under 180°F.
- Lubricate rods to fight corrosion.
- Log inspections for patterns.
These habits cut failures. A little effort now beats major repairs later. Operators notice smoother runs too.
How to Schedule a Safe Cylinder Replacement
Ready to replace? Plan it safe. Rushing leads to accidents. First, depressurize the system. Bleed lines fully. Shut off power—lock it out. Gather tools: Wrenches, seals, fluid. Have the new cylinder ready.
During removal: Support the grapple. Loosen fittings slow to avoid sprays. Inspect old parts for clues on failure.
Installation: Align properly. Torque bolts right. Fill with clean fluid. Test cycles empty first.
- Isolate and depressurize.
- Remove old cylinder carefully.
- Install new one with fresh seals.
- Bleed air, check for leaks.
- Run tests under light load.
Safety first—wear gear. Proper steps ensure no comebacks. If unsure, call pros.
Conclusion: Timely Replacement Means Reliable Performance
Wrapping up, watch for leaks, weak power, rod damage, and odd sounds. These signal replacement time.
Weigh rebuild against full swap based on damage and costs. Preventive tips like clean oil and alignments pay off big.
Catch issues early. It cuts downtime and boosts output. In the end, a healthy grapple cylinder keeps work flowing. Stay proactive.
Understanding when and how to replace your grapple hydraulic cylinder ensures reliability and safety—a principle emphasized across all Shining Hydraulic engineering practices.
FAQ
Q: What are the first signs that a grapple hydraulic cylinder needs replacement?
Oil leaks, weak gripping power, slow movement, rod scratches, or strange noises.
Q: Can I just replace the seals instead of the whole cylinder?
Yes, if only seals are worn. Replace the full cylinder for rod damage or barrel wear.
Q: What causes hydraulic cylinders to fail faster than normal?
Dirty oil, overload, bad alignment, extreme heat, or dust buildup.
Q: How often should seals be replaced to prevent failure? Every
2,000 operating hours or at the first sign of leaks—whichever comes first.
