A hydraulic regenerative circuit makes a cylinder extend faster by sending oil from the rod end back into the opposite end. The pump gets help filling the cylinder. Available pushing force falls, though, because both sides of the piston are now under pressure.

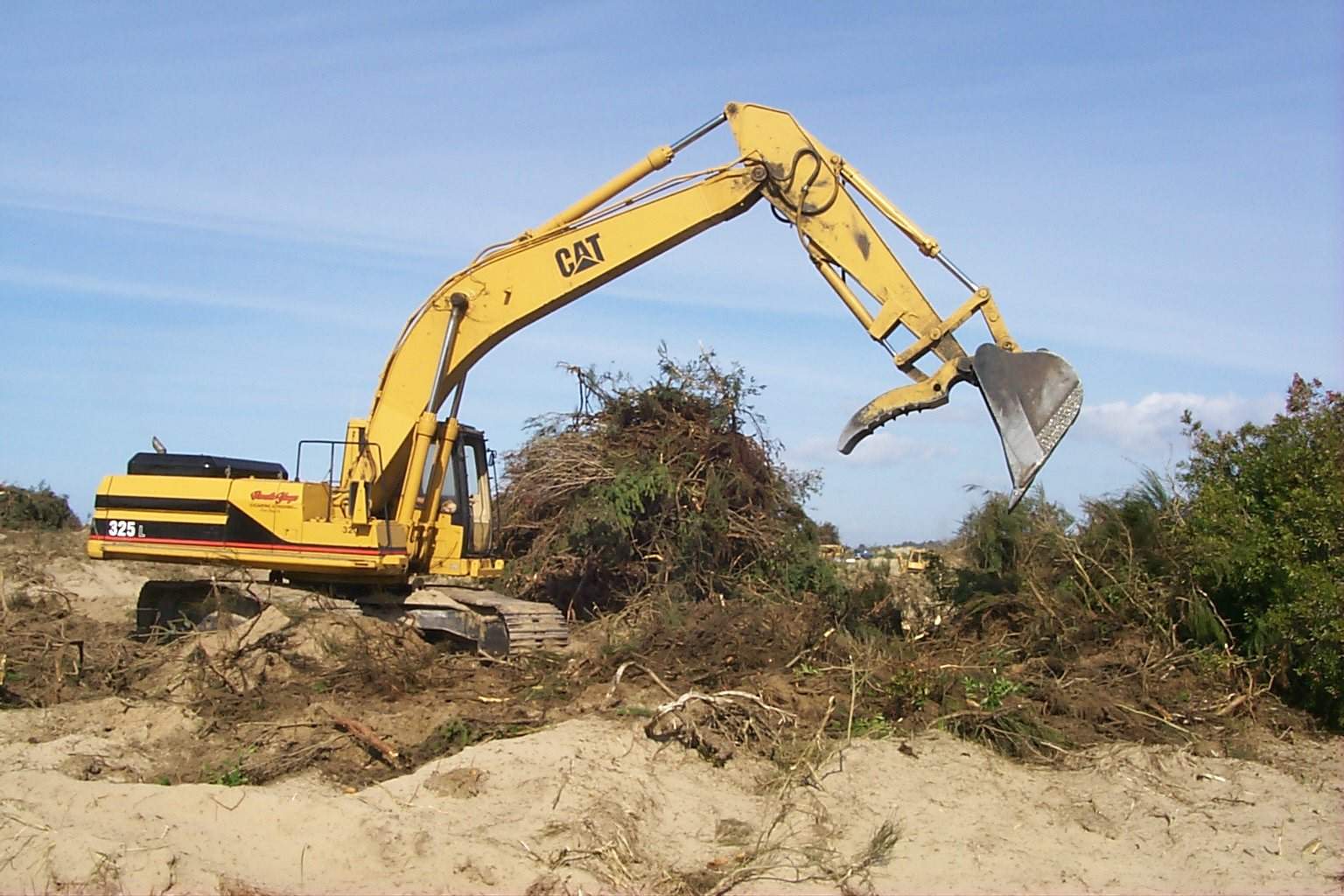

That trade can be worthwhile. Think about an attachment moving through empty space before it meets a load. There is little value in creeping through that gap at full working force. You would want the faster setting there. At the load, you would want the push back. A circuit that can switch between the two gives you that choice.
Where Does the Oil Go in a Regenerative Circuit?
During ordinary extension of a double-acting cylinder, pump oil enters the cap end, behind the piston. Oil on the rod side leaves for the tank. Two different routes.
Regeneration changes the second route. The oil leaving the rod side joins the pump supply and flows into the cap end instead. More oil arrives there each second, so the rod moves out faster.
Why doesn’t pressure on both sides stop it moving? The rod occupies part of one piston face. The cap-end face has a larger area for pressure to push against. With equal pressure on both sides, the remaining net push corresponds to the rod’s cross-sectional area.
There is a catch in that explanation. A slim rod leaves only a small net area. The speed increase may look impressive on paper while the force left over is barely enough to move the mechanism.
How Much Speed Do You Gain and Force Do You Lose?
Imagine a horizontal slide with 600 mm of empty travel before the work begins. For this example, give its cylinder an 80 mm bore and a 40 mm rod. The pump delivers 20 L/min. We can compare the two modes without changing any of that hardware.
The Empty Travel Gets Shorter
Start with the space the oil has to fill. The piston covers roughly 5,027 mm²; the rod cross-section occupies 1,257 mm². Using π × diameter² ÷ 4 for each bore and rod diameter gives those areas.
Ordinary extension needs pump oil across the whole piston area. Regeneration recirculates enough oil that the pump only makes up the volume of rod leaving the cylinder. That smaller filling job accounts for the difference below.
|
Movement at 20 L/min |
Ordinary Extension |
Regenerative Extension |
|---|---|---|
|
Calculated speed |
66.3 mm/s |
265.3 mm/s |
|
Time across the 600 mm gap |
9.0 seconds |
2.3 seconds |
These travel times assume steady flow without leakage or acceleration. Almost seven seconds disappear from the empty movement. They do not disappear from loading or pressing, so the gain across a complete cycle depends on how much time those other jobs take.
The Available Push Shrinks
Suppose the slide encounters 30 kN of resistance. Would it move?
At 160 bar, ordinary extension has a theoretical 80.4 kN available when the rod side is at negligible pressure. Regeneration offers only 20.1 kN with both ports at 160 bar. Each figure comes from pressure multiplied by the effective area, using 160 bar = 16 N/mm². Friction and flow losses still have to come out of those figures.
The ordinary mode has room to work. Regeneration falls short of the 30 kN demand. For this slide, switching modes is what makes the faster approach useful; staying in the fast mode would leave it stuck at the work.
When Should the Cylinder Leave Regeneration?
Picture a press tool crossing a clear gap towards a workpiece. Fast travel saves time in the gap. Fast contact may dent the part before the intended pressing operation even begins.
A switchable circuit redirects rod-end oil to the tank when full force is needed. Speed drops as the cylinder returns to ordinary extension. The change can follow a pressure signal or a position signal.
A pressure trigger accommodates workpieces that meet the tool at different positions. It responds to resistance, wherever that resistance comes from. A misplaced part could raise pressure before the intended contact point, for instance.
Where contact must be gentle, a position signal can end fast approach before the tool touches the part. Allow room for the actual valve response and deceleration. A changeover point drawn exactly at contact leaves neither.
We would question regeneration on a stroke that is heavily loaded almost from the start. There may be too little light travel to justify the added control. Find the useful fast-travel distance before choosing the circuit.
Why Is Regeneration Flow Higher Than Pump Flow?
The example’s 20 L/min pump creates a much larger local flow. During ideal regeneration, 60 L/min leaves the rod end and rejoins that supply. The cap end receives 80 L/min.
That matters when choosing cylinder port size. A passage selected only for the pump’s 20 L/min can restrict the combined flow. The resulting pressure difference also eats into the already reduced pushing force.

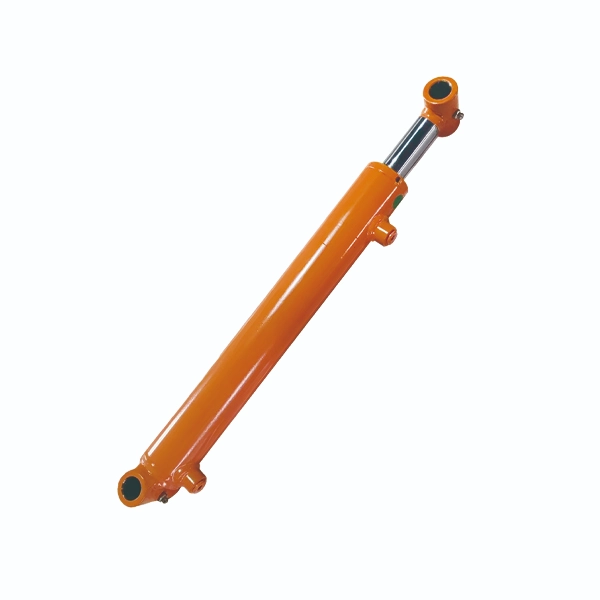

Trace the flow through each branch of the proposed circuit. Some passages carry pump flow alone. Others carry recycled or combined flow. Even with a compact welded cylinder, the connection arrangement needs space for the required passages. A neat installation is little help if the oil cannot move through it fast enough.
Does Regeneration Fit Your Machine Cycle?
Separate the approach distance from the loaded travel on your motion sketch. If the approach takes a worthwhile share of the cycle, talk through the cylinder dimensions with us. The useful target is a quicker approach with enough force left to move the mechanism, followed by a controlled working stroke.
FAQ
The area ratio explains most of the behaviour. These questions matter when you apply it to a particular machine.
Does Regeneration Always Double Cylinder Speed?
No. The ideal speed gain is piston area divided by rod cross-sectional area. Double speed requires the rod area to equal half the piston area. A rod with half the bore diameter gives four times the speed, as in our example.
Will a Larger Rod Make Regeneration Faster?
It does the opposite at the same pump flow. A larger rod slows regenerative extension but increases its available force at equal pressure. Choose the dimensions around the load; chasing the highest speed ratio can leave too little push.
Does Cylinder Regeneration Recover Energy?
The rod-side oil goes straight back into the same movement. There is no energy stored for the next cycle by this connection alone. Storing energy from a descending load would require additional equipment, such as a suitable accumulator.
Can Regeneration Hold a Suspended Load?
Do not rely on the regeneration connection to keep a load suspended. Holding the load requires its own suitable valve arrangement. Include both operating modes in that design, since the rod-side pressure changes when regeneration ends.
